    Evacuation Analysis - International

    Comments

    Loading comments...

    NOT REGISTERED YET?


    Register for the Use Case Management Service for free to start creating your first use case.


    Registered users can use the download area and the comment functions.

    Evacuation Analysis - International
    Document Type
    Use Case
    GUID
    C7DBA486-8E76-4007-A296-CD28EDF47D9F
    Identifier
    -
    Life Cycle Stage
    ISO 22263
    Revision
    V1.1.0
    Project Status
    Approved
    Maturity Level
    Example
    Published on
    Dec 6, 2021
    Last Change
    Nov 4, 2024
    Publisher
    buildingSMART International
    Authors
    • Angelika Kneidl
    • Asim Siddiqui
    • Jimmy Abualdenien
    • Peter Lawrence
    • Rainer Könnecke
    • Timo Lehtoviita
    Home
    Use cases
    Evacuation Analysis - International

    Use Case Document Definition

    Exchange Requirements

    Imprint

    Project Group

    • Jimmy Abualdenien (Technical University of Munich (TUM))
    • Angelika Kneidl (accu:rate GmbH)
    • Rainer Könnecke (IST GmbH)
    • Peter Lawrence (University of Greenwich)
    • Timo Lehtoviita (LAB University of Applied Sciences)
    • Asim Siddiqui (University of Greenwich)
    • Peter Thompson (Autodesk)

    Copyright

    All dokuments are licensed as a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License
    (Attribution-Non-Commercial-ShareAlike 4.0). Further information can be found at

    creativecommons

    Handling

    The documents reflect the current best practice and do not claim to be complete. They should not to be understood in the sense of a generally valid recommendation or guideline from a legal point of view. The documents are intended to support appointing and appointed parties in the application of the BIM method. The documents must be adapted to the specific project requirements in each case. The examples listed do not claim to be complete. Its information is based on findings from practical experience and is accordingly to be understood as best practice and not universally applicable. Since we are in a phase in which definitions are only emerging, the publisher cannot guarantee the correctness of individual contents.

    Management Summary

    To plan buildings compliant with respect to occupants' safety, a performance-based analysis of the design can be conducted. For that, pedestrian simulations can be utilised. These simulations are used to check whether performance indicators are fulfilled according to regulations and establish if the building is compliant. To perform such analysis the model has to provide specific information such as geometry, population, etc.

    Description

    The normal practice in relation to fire safety in buildings is to apply a prescriptive approach. However, for more complex buildings, the prescriptive rules are not always applicable. Therefore, a performance-based approach is used, which utilises either hand calculations or computer model simulations to determine evacuation times and possible bottlenecks in the building's design. For a given scenario, performance-based analysis has to determine the Available Safe Egress Time (ASET), which needs to be greater than the Required Safe Egress Time (RSET) plus a suitable safety margin.

    • ASET (commonly determined by the time required for certain fire parameters to reach identified critical life safety conditions) is driven by the fire development and determined by a fire simulation.
    • RSET (commonly defined as the time required to complete the evacuation) is driven by human behaviour and often determined by an evacuation simulation.

    Another approach is to use coupled fire and evacuation analysis, where the impact of fire hazards on the population is directly taken into consideration during the evacuation simulation and so RSET and ASET values are not explicitly determined. Although this approach is less common, it can provide more realistic results.

    In the ASET and RSET approach, the evacuation analysis is undertaken without exposing the population to the evolving fire atmosphere, and so the fire does not impact the evacuation dynamics in any way. In the coupled approach, the evacuating population are exposed to the developing fire hazards, which may have an impact on their performance or the decisions they make during the evacuation. Using such an analysis, it is possible to derive a more realistic estimation of evacuation times and to determine the impact of the evacuees' cumulative exposure to fire hazards i.e. number of expected fatalities and injury levels [1].




    [1] Siddiqui AA, Ewer JA, Lawrence PJ, Galea ER, Frost IR. Building Information Modelling for performance-based Fire Safety Engineering analysis – A strategy for data sharing. J Build Eng. 2021;42(102794). http://dx.doi.org/10.1016/j.jobe.2021.102794

    Life Cycle Stages

    ISO 22263

    BIM Objectives & Benefits

    1. Identify the actors and stages involved in the evacuation analysis during the design phase.
    2. Identify the workflow for evacuation modelling tools.
    3. Identify data exchange requirements to carry out evacuation analysis using modelling tools.
    4. Identify current IFC support for data exchange and limitations, together with areas for improvement.

    Delimitation

    1. This use case examines processes across multiple countries, such as Germany and the United States.
    2. Has a specific focus on the design stages.

    Abbreviations

    Fire Safety Engineering (FSE)

    Occupant Movement Analysis (OMA)

    Process

    Process diagram

    Overall process

    Description

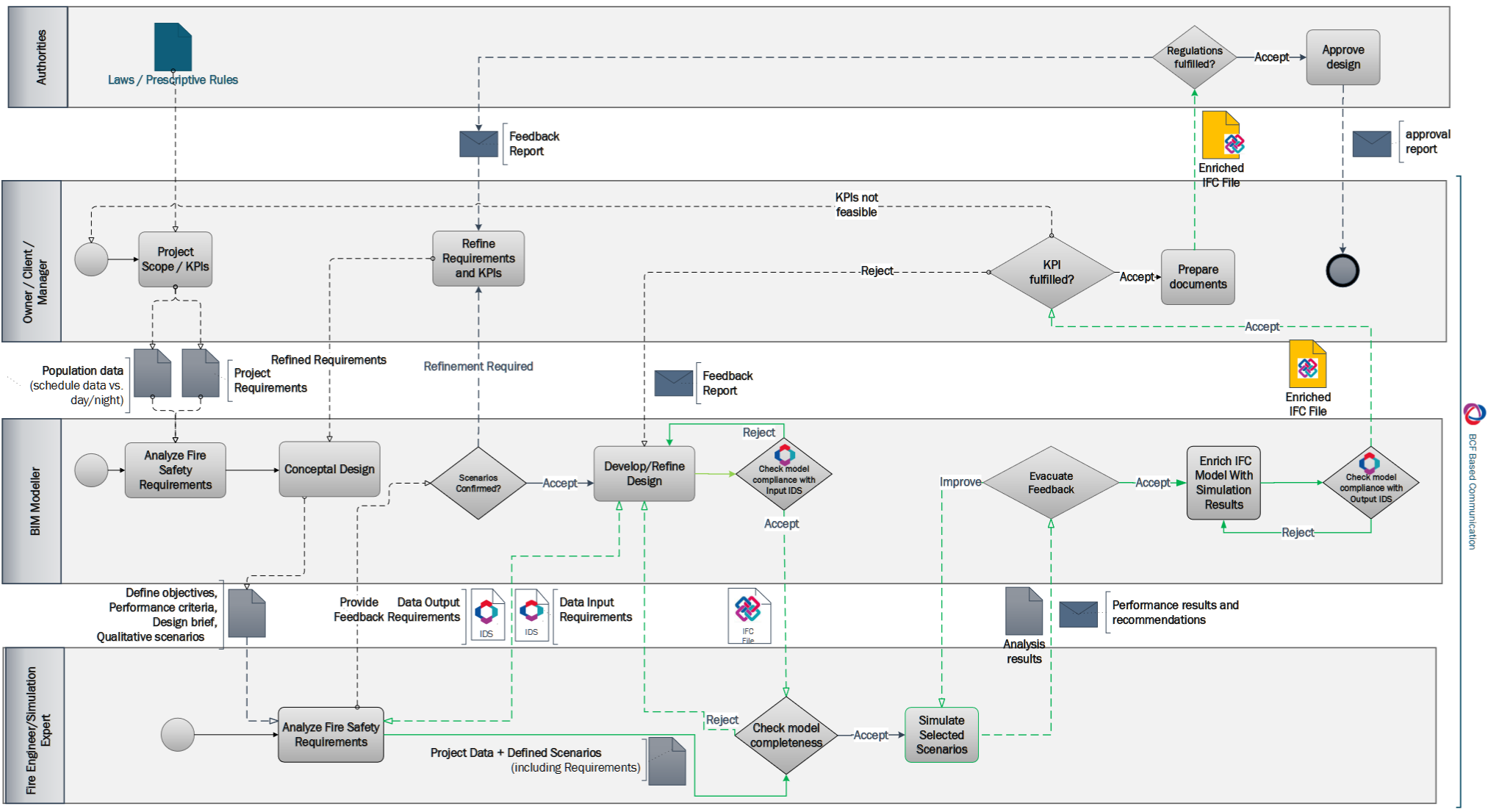

    The process map of Evacuation Analysis (International) is shown below:

    Images
    Files
    • oma-bpmn-evacuation-international-openBIM-v3.png (png | 391.40 KB)
    • oma-bpmn-evacuation-international-openBIM-v3.pdf (pdf | 90.94 KB)
