    Cleaning of glass facades

    Kommentare

    Kommentare werden geladen...

    NOCH NICHT REGISTRIERT?


    Registrieren Sie sich für den Use Case Management Service kostenlos, um Ihren ersten Use Case zu erstellen.


    Registrierte Benutzer können den Download-Bereich und die Kommentarfunktionen nutzen.

    Cleaning of glass facades
    Dokumenttyp
    Anwendungsfall
    GUID
    9C90B893-CCAB-488E-A921-D238EAE93E2C
    Kennung
    CHE.53315.01.06
    Lebenszyklusphase
    ISO 22263
    Revision
    V1.1.1.0
    Projektstatus
    Entwurf
    Reifegrad
    Beispiel
    Veröffentlicht am
    17. März 2022
    Letzte Änderung
    12. Mai 2022
    Herausgeber
    buildingSMART Switzerland
    Autoren
    • Bühler Joel
    • Daniel Schwarz
    Startseite
    Anwendungsfälle
    Cleaning of glass facades

    Anwendungsfall Dokumentdefinition

    Austauschanforderungen

    Software, Tools & Dienstleistungen

    Impressum

    Projektgruppe

    • Bühler Joel (ffbk Architekten AG)
    • Lucia Nievergelt Nievergelt (Genossenschaft Migros Zürich)
    • Daniel Schwarz (LIBAL Schweiz GmbH)

    Partner

    Urheberrecht

    All dokuments are licensed as a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License
    (Attribution-Non-Commercial-ShareAlike 4.0). Further information can be found at creativecommons

    Handhabung

    The documents reflect the current best practice and do not claim to be complete. They should not to be understood in the sense of a generally valid recommendation or guideline from a legal point of view. The documents are intended to support appointing and appointed parties in the application of the BIM method. The documents must be adapted to the specific project requirements in each case. The examples listed do not claim to be complete. Its information is based on findings from practical experience and is accordingly to be understood as best practice and not universally applicable. Since we are in a phase in which definitions are only emerging, the publisher cannot guarantee the correctness of individual contents.

    Zweck und Umfang

    • Model-based provision of information bases for the management organization for the purpose of planning and/or tendering for cleaning services of glass surfaces on facades of high-rise buildings from the construction project
    • Use uf AIM is enabled

    Beschreibung

    This use case is used to order the AIM basic information for cleaning of glass surfaces, window frames and the shading in the area of the facade.

    In order that the cleaning service on glass facades, windows, window frames and the shading can be planned or tendered, the quantity data (e.g. glass surfaces to be cleaned) and the accessibility in particular are recorded for this purpose.

    When recording the quantity data, it should be noted that not only the layered surface of the window but also the glass surface to be cleaned (both sides of the window or glazed element) must be recorded. In order to take into account, the particularity of facades with two layers of glass (e.g. windows with upstream impact or weather panes). an optional "Glass facade layer_additional" is introduced, which is to be used only if a second facade layer to be cleaned with glass portion is present. To illustrate this connection, the following example is used:

    In a high-rise building, a window layer is created with windows that can be opened for cleaning. For fall protection, there is another glass layer with impact panes. On one m2 window area of the first glass facade layer there are thus 2 m2 glass area. Another m2 of window layer of the baffle add another 2 m2 of glass surface to be cleaned, which makes a total of 4 m2 of glass surface to be cleaned on one m2 of facade surface.

    Since the shading is partly carried out at the same time as the glass cleaning, the quantity and materialization of the shading is also recorded. and the materialization are also recorded.

    The indication of whether the window can be opened for cleaning allows conclusions to be drawn as to whether technical means such as a facade access ramp are required for cleaning. Technical means such as a facade access system or a telescopic lifting platform are required for cleaning.

    In order to record the costs of the cleaning service and to charge the respective tenant or user, the glass surfaces are the glass surfaces are recorded in relation to the adjacent room.

    Lebenszyklusphasen

    ISO 22263

    BIM-Ziele & Vorteile

    • Recording of all information required for the planning and tendering of cleaning services on glass facades in the construction project as well as transfer to the management organization, such as glass area in m2, type of facade, etc.
    • Provision of the basis for the forecast of cleaning costs

    Abgrenzung

    • Defined glass surfaces for cleaning, no optimization of glass surfaces
    • No optimization of cleaning costs
    • The evaluation of the glass facade is always related to a room
    • The recording of the area to be cleaned refers to the adjacent room. This applies both to windows that can be opened and to glass facades that can only be accessed via skyworker / facade access system.

    Standards / Referenzdokumente

    • ProLeMo

    Voraussetzungen / Rahmenbedingungen

    • Architectural model and facade model if available
    • Room model with room number, location, reference to adjacent facade element
    • Quantity extract window area and glazed area with details of opening type, access type, frame type, frame material, window type, manufacturer documentation
    • Quantity extract window area shaded incl. shading type, manufacturer documentation
    • Window category with correct IFC Class

    Abkürzungen

    • Asset Information Model (AIM)
    • Asset information requirements (AIR)
    • BIM Execution Plan (BEP)
    • Exchange Information Requirements (EIR)
    • Facility Management (FM)

    The following services support the Use Case «Cleaning of glass facades»

    Singular AG - Qualifer

    The Qualifier is a revolutionary, browser-based quality assurance program for BIM projects. It checks specific requirements for models and ensures data quality along the entire lifecycle. For more transparency, process reliability, precision and lower error rates in BIM projects.

    Singular Website:  https://snglr.com/



    Video: Qualifier - Use Case Management

    Qualifier-Link: Qualifier - Use Case Management

    Login/E-Mail: ucm@buildingsmart.ch

    Password: swissbau2022

    LIBAL®

    The LIBAL® Digital Twin is an intuitive product for managing your tasks. The Digital Twin serves as a checkbook for your investment. The core of our intelligent solutions is a common data environment (CDE), which improves models and prepares them for operation. This structures and automates the information management between all project participants, making it much easier.
    LIBAL website: https://www.libal-tech.ch

    Video: LIBAL - Cleaning glass facades
    LIBAL link: LIBAL
    Login/E-mail: ucm@buildingsmart.ch
    Password: swissbau2022

    Beschreibung

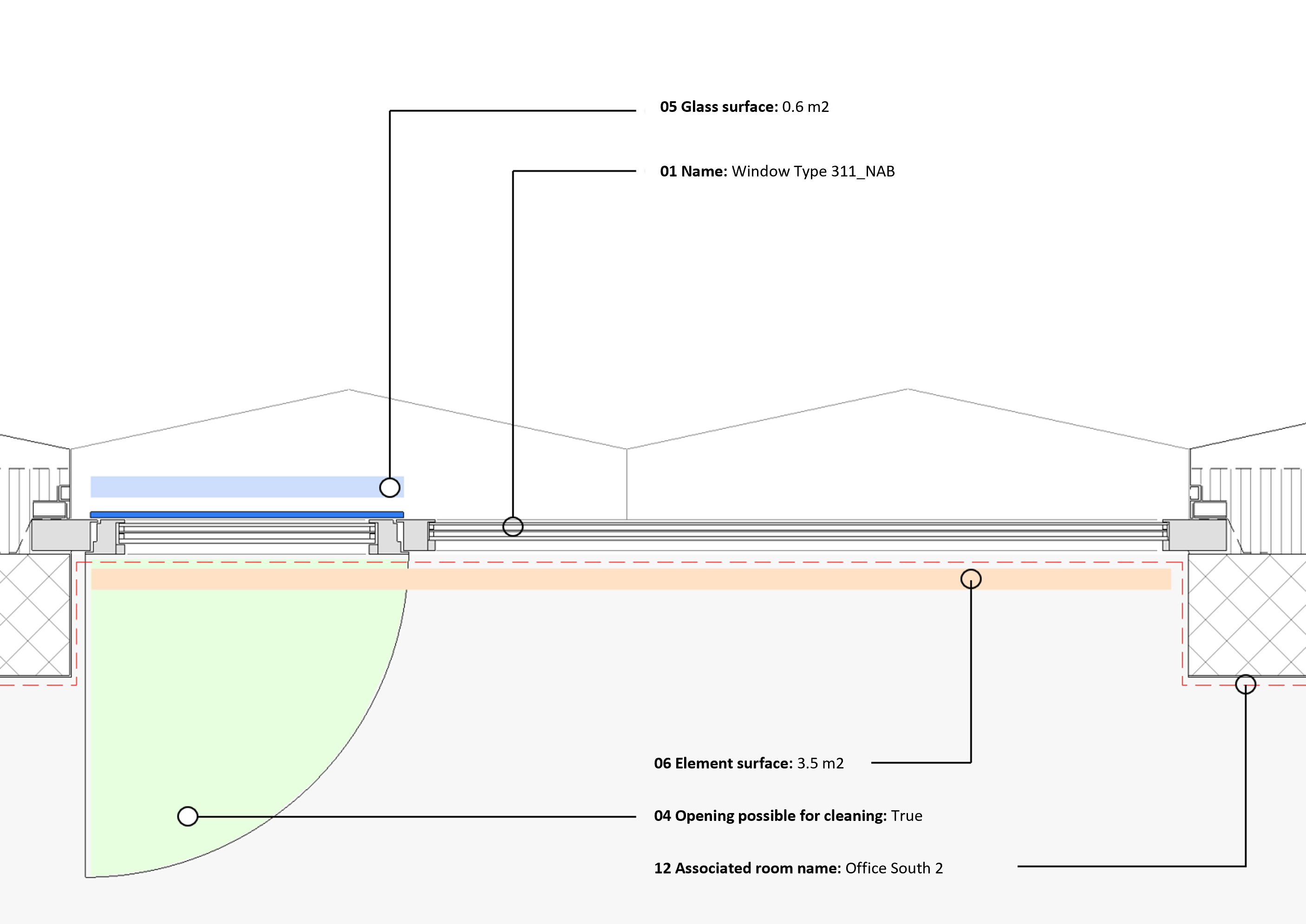

    Minimum model requirement as an extension to the Exchange Requirements.

    The model element (IfcWindow) must have a logically linked reference to a space so that the quantity specification and the glass area per space can be determined.

    (The IfcWindow object is linked with an IfcRelContainedInSpatialStructure@IfcSpace).

    Dateien

    • CHE.5315.01.06 Glass facades_v1.0_ids0.4.3.xml (xml | 16,46 KB)

    Process

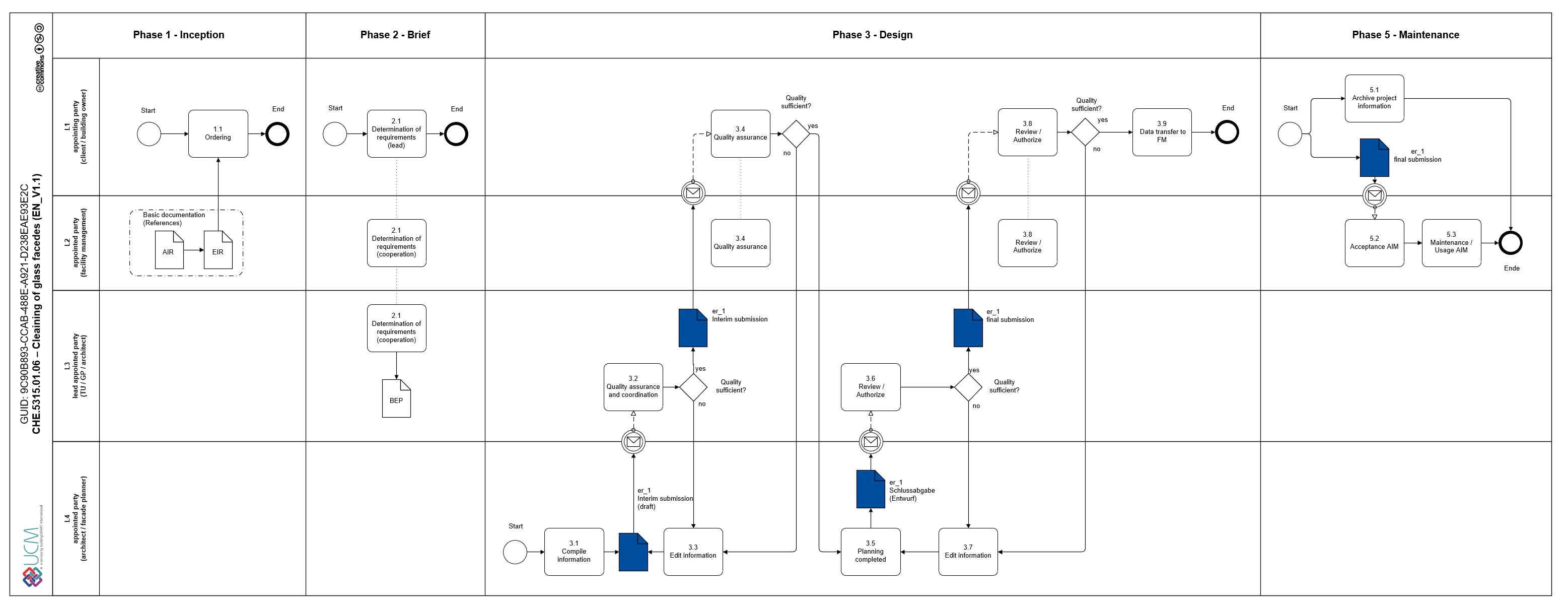

    Prozessdiagramm

    Gesamtprozess

    Beschreibung

    Dateien
    • pm_CHE.5315.01.06 Cleaining of glass facedes (EN_V1.1).pdf (pdf | 86,52 KB)

    ISO 22263

    Inception
    1.1 | Ordering
    Brief
    2.1 | Determination of requirements
    Design

    Modeling guideline

    When recording the quantities, it should be noted that not only the layer surface of the window, but also the glass surface to be cleaned (both sides of the window or glazed element) must be recorded. In order to take into account the particularity of facades with two glass layers (e.g. windows with upstream impact, or weather panes), an optional "Glass facade layer_additional" is introduced, which is to be used only if there is a second facade layer with glass content to be cleaned. To illustrate this connection, the following example is used:

    In a high-rise building, a window layer with windows that can be opened for cleaning is created. For fall protection, there is another glass layer with impact panes. On one m2 of window area of the first glass facade layer, there are thus 2 m2 of glass area. Another m2 of window layer with baffles add another 2 m2 of glass surface to be cleaned, which makes a total of 4 m2 of glass surface to be cleaned on one m2 of facade surface.

    In order to record the costs of the cleaning service and to enable the billing of the service to the respective tenant or user, the glass areas are recorded in relation to the adjacent room. The attributes are related to the window, the window must be related to the room.

    3.1 | Compile information
    er_1 | Interim submission
    3.2 | Quality assurance and coordination
    3.3 | Edit information
    3.4 | Quality assurance
    3.5 | Planning completed
    3.6 | Review / Authorize
    3.7 | Edit information
    3.8 | Review / Acceptance
    3.9 | Data transfer to FM
    Maintenance
    5.1 | Archive project information
    er_1 | Final submission
    5.2 | Acceptance AIM
    5.3 | Maintenance / Usage AIM

    Gestaltungsregeln

    Beschreibung

    When recording the quantities, it should be noted that not only the layer surface of the window, but also the glass surface to be cleaned (both sides of the window or glazed element) must be recorded. In order to take into account the particularity of facades with two glass layers (e.g. windows with upstream impact, or weather panes), an optional "Glass facade layer_additional" is introduced, which is to be used only if there is a second facade layer with glass content to be cleaned. To illustrate this connection, the following example is used:

    In a high-rise building, a window layer with windows that can be opened for cleaning is created. For fall protection, there is another glass layer with impact panes. On one m2 of window area of the first glass facade layer, there are thus 2 m2 of glass area. Another m2 of window layer with baffles add another 2 m2 of glass surface to be cleaned, which makes a total of 4 m2 of glass surface to be cleaned on one m2 of facade surface.

    In order to record the costs of the cleaning service and to enable the billing of the service to the respective tenant or user, the glass areas are recorded in relation to the adjacent room. The attributes are related to the window, the window must be related to the room.

    Dateien
    • CHE.53315.01.06_Design Rules Glassfacade V1.1.pdf (pdf | 3,21 MB)

    Adaptation of generic EIR to project requirements, if applicable.

    Ordering of client information from Lead Appointed Party based on EIR including AIR. This should take place as part of the engagement of the planners.

    Exchange information requirements (EIR)

    Formulation of basic documents

    • EIR defines the format and delivery timing of the information request for scheduling cleaning services on glass facades include.
      AIR are part of the EIR

    Asset information requirements (AIR)

    Formulation of basic documents

    • AIR contains the information requirements for planning cleaning services on glass facades.

    Initiator: appointing party (client / building owner)

    The client / building owner clarifies the requirements for the specific project together with the appointed party (facility management) and lead appointed pary (e.g. TU / GP / architect).

    Responsibility for information provision and quality assurance within the planning team is defined in the BEP (planning of planning).

    BIM Execution Plan (BEP)

    • BEP consits of planning to meet the EIR & PIR.

    Initiator: appointing party (client / building owner)

    Appointed party (architect / facade designer) prepares the following information:

    • Quantity extract window area and glass area with information on opening type, access type, frame type, frame material, window type, manufacturer documentation.
    • Quantity extract window area shaded incl. type of shading, manufacturer documentation

    Initiator: appointed party (architect / facade planner)

    On one hand, the interim submission serves to fulfill a need for information in earlier phases, and on other hand, it serves quality assurance and the early detection of planning errors.

    The interim submission corresponds to the current planning status and does not yet have to contain the complete information.

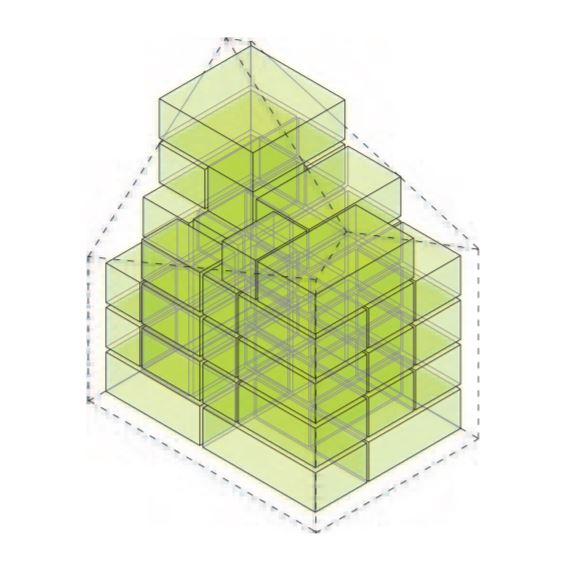

    Schematic representation of rooms and windows (LOG 300)

    • Glass facade layer 1 description + opening type
    • Glass facade layer 2 description + type of opening
    • Glass facade layer 1 m2 (2 times) + glass area
    • Glass facade layer 2 m2 (2 times) + glass area
    • Frame type + frame material
    • Frame (yes/no)
    • Shading (yes/no) + Shading type

    Required Documets

    • Manufacturer documentation for glass facade layer

    Initiator: lead appointed party (TU / GP / architect)

    Executer: appointed party (architect / facade planner)

    The lead appointed party coordinates and controls the quality of the data provided by the information provider.

    • If the quality meets the requirements, the intermediate submission is handed over to the information provider.
    • If the quality does not meet the requirements, the interim submission is returned to the appointed party

    Initiator: lead appointed party (TU / GP / architect)

    If the interim submission of the er_1 does not meet the requirements according to the assessment of the lead information provider or the information requester, the information is adjusted / supplemented and re-submitted.

    Initiator: appointed party (architect / facade planner)

    The appointing party monitors the quality of the data provided by the lead appointed party with the cooperation of the facility management.

    • If the quality meets the requirements, the interim submission is accepted.
    • If the quality does not meet the requirements, the interim submission is returned to the lead information provider.

    Initiator: appointing party (client / building owner)

    After the interim submission has been accepted by the appointing party, the planning is continued and finally completed. For this purpose, the appointed party provider hands over the final delivery to the lead appointed party.

    Initiator: appointed party (architect / facade planner)

    The appointing party provider checks the quality of the data provided by the lead appointed party provider with the cooperation of the facility management.

    • If the quality meets the requirements, the interim submission is accepted.
    • If the quality does not meet the requirements, the interim submission is returned to the lead information provider.

    Initiator: lead appointed party (TU / GP / architect)

    If the interim submission of the er_2 does not meet the requirements according to the assessment of the lead information provider or the information requester, the information is adjusted / supplemented and re-submitted.

    Initiator: appointed party (architect / facade planner)

    The appointing party checks the quality of the data provided by the lead appointed party provider with the cooperation of the facility management.

    • If the quality meets the requirements, the final delivery is accepted.
    • If the quality does not meet the requirements, the final delivery is returned to the lead information provider.

    Initiator: appointing party (client / building owner)

    Data hand over to facility management

    Initiator: appointing party (client / building owner)

    The project information (construction documentation) is archived, this serves the traceability of the final state after completion construction project.

    Initiator: appointing party (client / building owner)

    Exchange requirements er_1 in phase 3 (maintenance) corresponds to er_1 of phase 2 - design

    Initiator: appointing party (client / building owner)

    Executer: appointed party (facility management)

    Facility Management adds information from the client (e.g. cost center, responsibility, number of annual cleanings, etc.) in the Asset Information Model (AIM).

    Subsequently, the data is transferred to the client's target system (e.g. CAFM system, ERP system, etc.), if available.

    Initiator: appointed party (facility management)

    The information on the glass facade is a component of the Asset Information Model (AIM) and is used, for example, for the tendering of cleaning services on the glass facade.

    When adjustments are made to the asset (building), the information in the Asset Information Model (AIM) is adjusted.

    Initiator: appointed party (facility management)
